- Preprogrammed Application: Simplifies the commissioning process.
- Network Communication: Supports BACnet MS/TP or BACnet IP for device communication.
- Durable Construction: Features riveted pre-painted galvanized steel terminal construction.
- Sensors:
- Plenum Pressure: ±1% Full Scale
- Plenum Temperature: ±0.36°F (0.20°C)
- Plenum Relative Humidity: ±3%
- Slab Temperature: ±0.36°F (0.20°C)
- Outputs: Damper / VSD Control: 0–10VDC Analog Signal
- Flexible Sensor and Controller Options: Housing system for sensors can be provided along with the controller, or just the sensors can be supplied.
Plenum Pressure ControlsNovember 9, 2024December 19, 2024

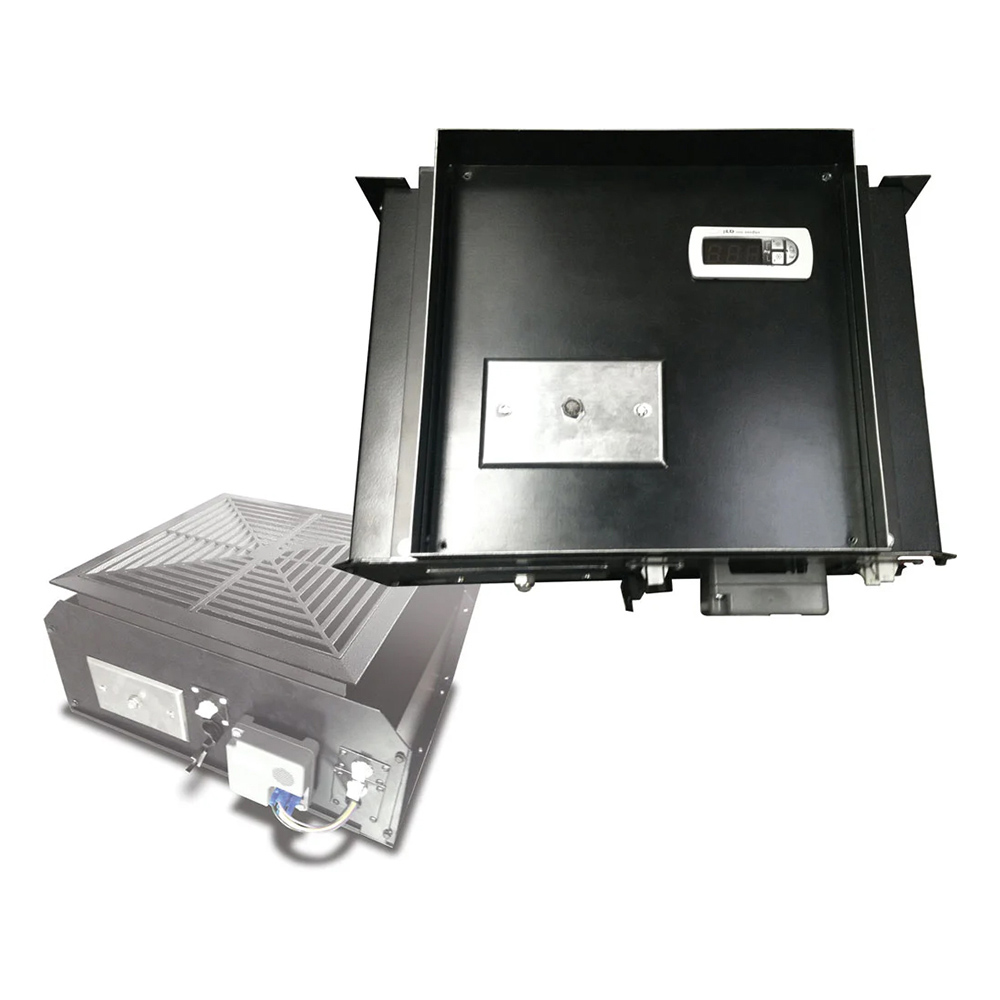

Plenum Pressure Controls
Flexi’s Plenum Pressure Controls ensure optimal performance in UFAD systems by accurately measuring and adjusting plenum pressure. Utilizing ultra-accurate sensors with a ±0.10 inwc (25 Pa) range, pressure controls can be integrated with supply dampers or AHU fan speeds. Options include pressure sensors built into floor diffusers for seamless integration and simple 0-10V DC signal controls for straightforward operation.
