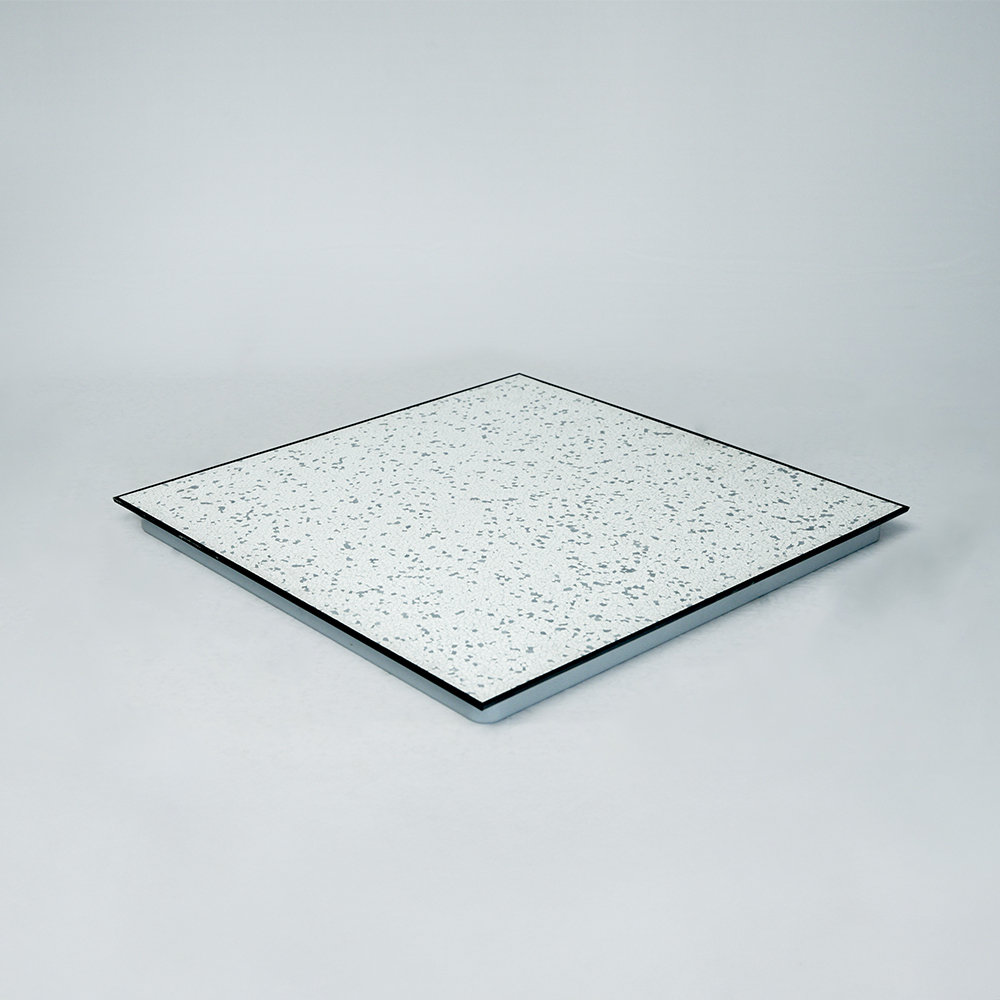

Flexi Steel Cementitious Panels – ESD

Flexi’s Electrostatic Discharge (ESD) steel cementitious panels are designed to protect sensitive electronic equipment by dissipating static electricity. These panels are essential for environments like data centers and laboratories, where static control is critical.

Categories: ,

  • Applications: General Office, Casino, Training Room, Hotel, Auditorium and Library
  • Bottom pan of 49 hemispherical cones and 36 reverse cones with FOLDED GUSSETS at the four corners
  • 125 mm – 1500 mm with change in understructure
  • Soft Body Impact Test – System does not collapse on or after impact of a 40 kgs Canvas Bag filled with dry sand being dropped from a height of 1000 mm.Specified in the test method (T12.03) of MOB PF2 PS Standards.
  • Hard Body Impact Test – System does not collapse on or after impact of a 4.5 kgs Steel Indentor dropped from a height of 600 mm. Specified in the test

Description

Panel Understructure Options Panel Grade Load Bearing Capacity
Uniformly Distributed Load (UDL) Concentrated Load Rolling Loads Ultimate Concentrated Load
Steel Cementious Bolted Stringer System 800 1900 kg/m2 363 kgs 190 kgs 905 kgs
1000 2150 kg/m2 454 kgs 245 kgs 1135 kgs
1250 2400 kg/m2 567 kgs 290 kgs 1418 kgs
1500 2700 kg/m2 680 kgs 315 kgs 1701 kgs
2000 4000 kg/m2 906 kgs 450 kgs 1814 kgs
