- Applications: General Office, Casino, Training Room, Hotel, Auditorium and Library

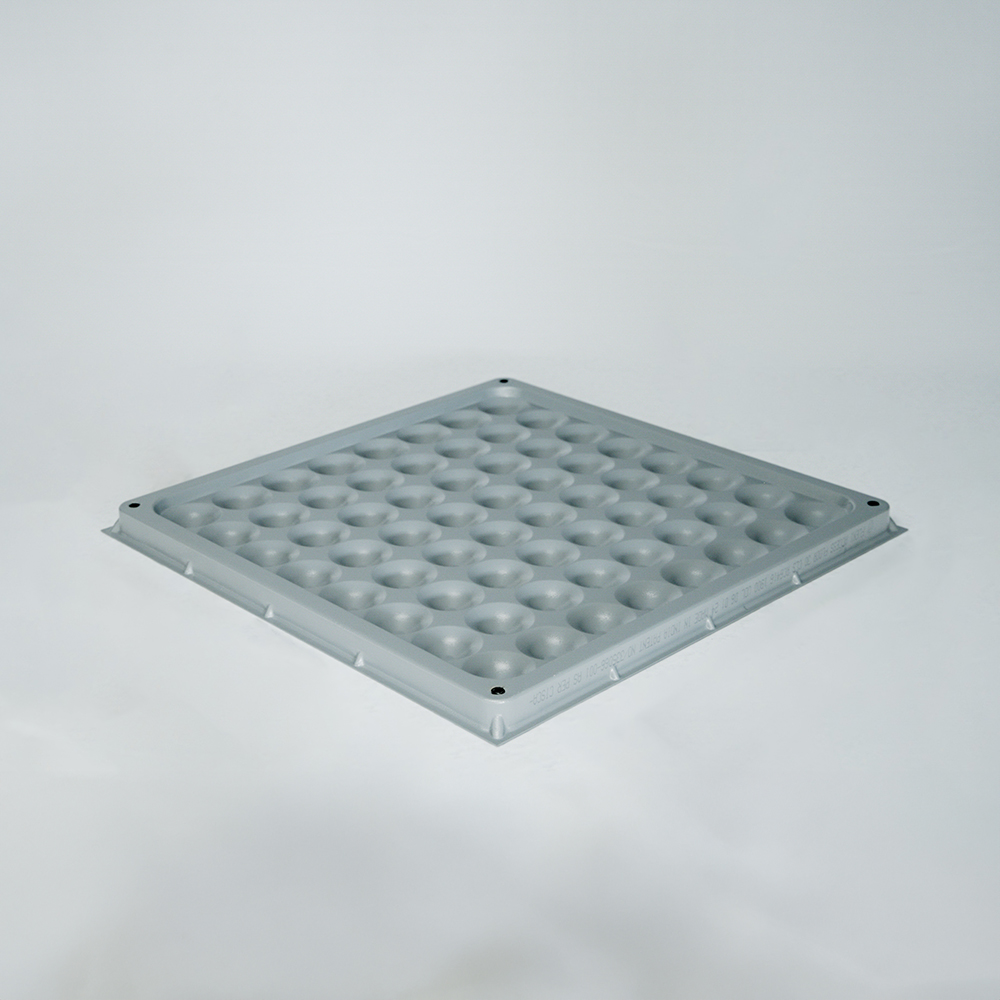

- Bottom pan of 64 hemispherical cones and provided with 16 gussets
- 65 mm – 1500 mm with change in understructure
- Soft Body Impact Test – System does not collapse on or after impact of a 40 kgs Canvas Bag filled with dry sand being dropped from a height of 1000 mm.Specified in the test method (T12.03) of MOB PF2 PS Standards.
- Hard Body Impact Test – System does not collapse on or after impact of a 4.5 kgs Steel
Indentor dropped from a height of 600 mm. Specified in the test
Flexi Steel Cementitious Panels – BAREOctober 25, 2024February 11, 2025

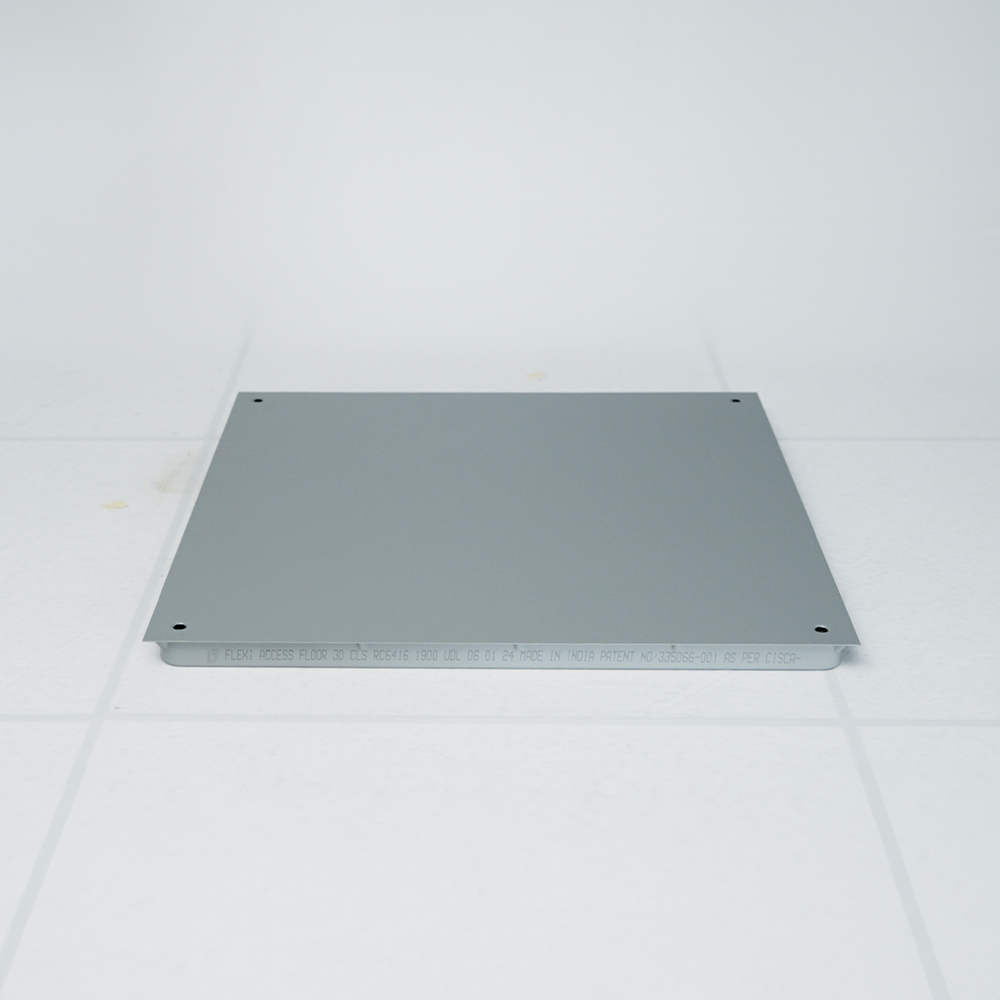

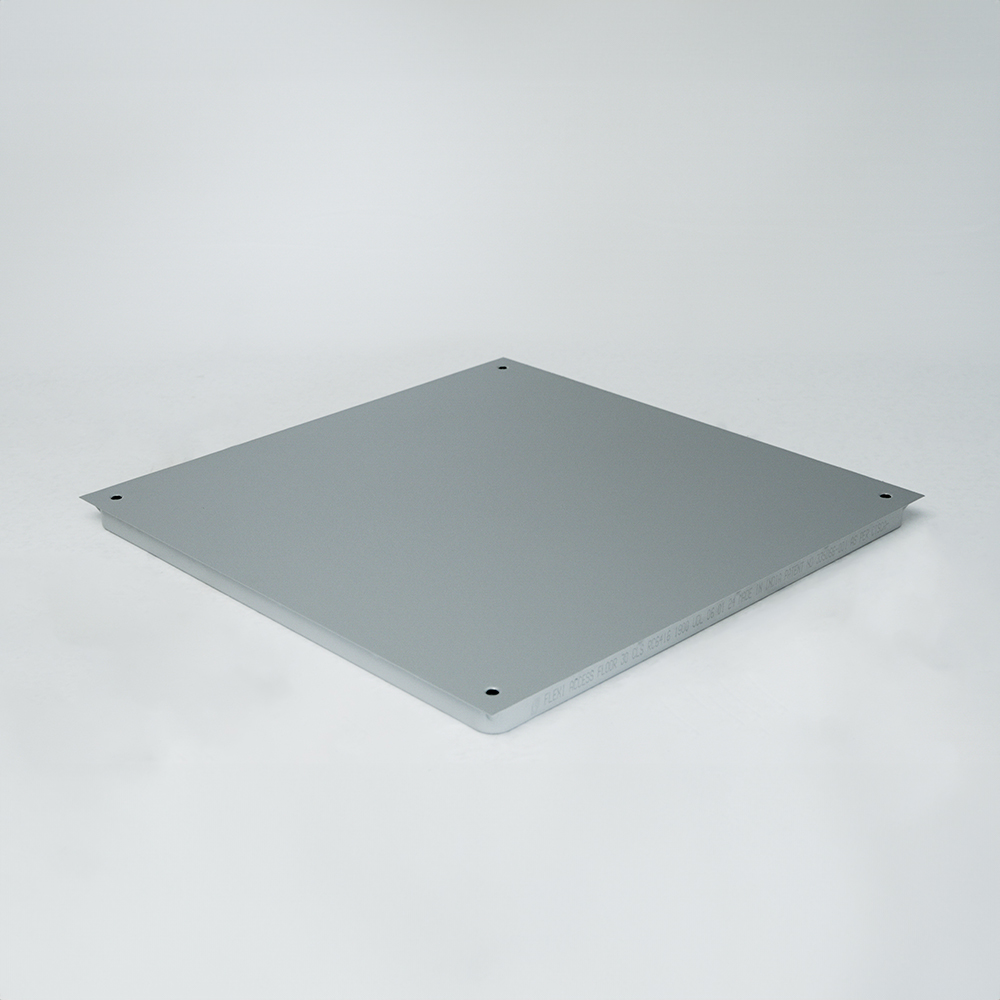

Flexi Steel Cementitious Panels – BARE
Flexi’s bare steel cementitious panels provide a robust and durable solution for raised access floors, ideal for high-traffic areas. These panels offer superior load-bearing capacity and fire resistance, making them suitable for a variety of industrial and commercial applications.
Description
| SYSTEM PERFORMANCE: FLEXI STEEL CEMENTITIOUS – BARE | ||||||
|
PANEL
|
UNDERSTRUCTURE OPTIONS
|
PANEL GRADE
|
LOAD BEARING CAPACITY | |||
| Uniformally Distributed Load (UDL) |
Concentrated Load |
Rolling Loads |
Ultimate Concentrated Load |
|||
|
STEEL CEMENTIOUS
|
Low Lock, Corner Lock, & Bolted Stringer System
|
800 | 1900 kg/m2 | 363 kgs | 190 kgs | 905 kgs |
| 1000 | 2150 kg/m2 | 454 kgs | 245 kgs | 1135 kgs | ||
